Rapco Horizon RM1-25 25 ft
In stock
CABLES
RapcoHorizon
Product Overview

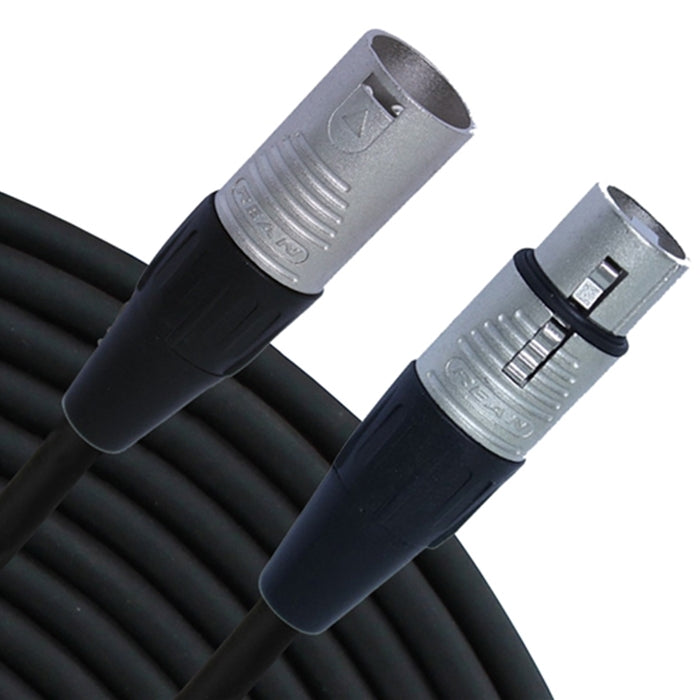

RapcoHorizon's RM1 series XLR Male to XLR Female microphone cables are made with matte PVC jacketing for a durable yet still flexible design. They feature RapcoHorizon connections standard, but are available with other connector options to suit your auditory tastes.
Rapco RM1-25 Features:
- (2) 24 gauge center conductors
- Utilizing a serve shield process for quiet operation yielding maximum flexibility
- Matte jacket PVC material is very flexible yet durable with very low memory
- Pure copper conductor and shield
- RapcoHorizon connector standard. Other connector options available:
- (Amphenol, Neutrik, Switchcraft) Contact your rep for details
- Individually tested for performance and quality
Rapco RM1-25 Specifications:
- Cable: MIC1
- Conductor Gauge: (2)24 gauge
- Shield: Bare annealed copper serve
- Shield Coverage: 95%
- Jacket: Matte PVC
- O.D. 0.230"
- Capacitance: 21 pF/ft. @ 1 kHz
- Cond.-Shield Capacitance: 37 pF/ft. @ 1 kHz
- Characteristic Impedance: 70O NOMINAL
- D.C. Resistance @ 20°C: 23O/1000'
